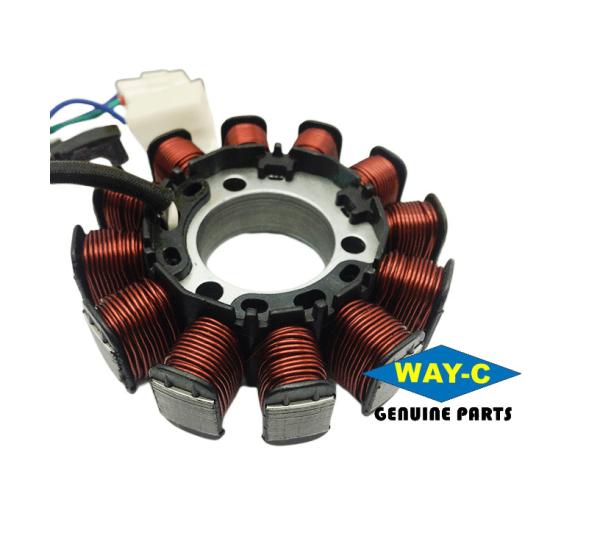

The motorcycle magneto coil is mainly composed of a trigger coil, a magneto coil and an ignition coil

This type of magneto coil generally has five wires

The four wires are the yellow wire and the pink wire, the blue and white wire and the green and white wire, which are the charging coil wire and the trigger coil wire, respectively.
1. The black red line is the ignition coil, and the connecting wire is directly connected to the igniter.

2. The blue and white wire and the green and white wire are the trigger coils, and the connecting wires are also directly connected to the igniter.

3. The yellow wire and pink red wire are connected to the charging coil, and the wire is directly connected to the rectifier regulator.

Under normal circumstances, the color of the motorcycle line is basically unified, but individual brand models may have slightly different colors, so the connection can not be blindly connected to each other with the same color, and the characteristics of the connecting wires must be clarified in order to connect with each other, otherwise it is easy to damage other electrical components.

The coil in a circuit refers to an inductor. The guide wires are wound one by one, and the wires are insulated from each other, while the insulating tube can be hollow, or it can contain an iron core or a magnetic powder core, referred to as an inductor. Inductance can be divided into fixed inductance and variable inductance, and fixed inductance coils are referred to as inductors or coils. Expressed in L, the units are henry (H), millihenry (mH), microhenry (uH), 1H = 10^3mH = 10^6uH.
